J-type

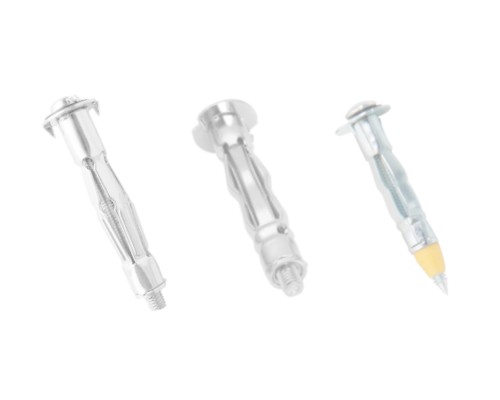

Hollow Wall Anchor-J type
(中空壁虎-J型)
with/without washer

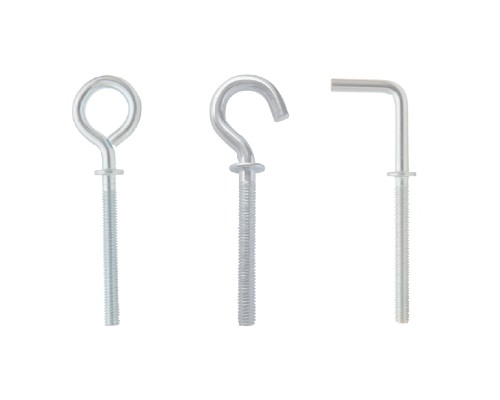

with Pan head screw / Countersunk screw / O,C,L hook

Back

Hollow Wall Anchor-J type
with/without washer
with Pan head screw / Countersunk screw / O,C,L hook

the thicknesss of steel plate:

M4-0.6mm
M5-0.8mm
M6-0.8mm



Material:

    Steel
Unit:

    MM
Surface treatment:

    Zinc plated Cr3+

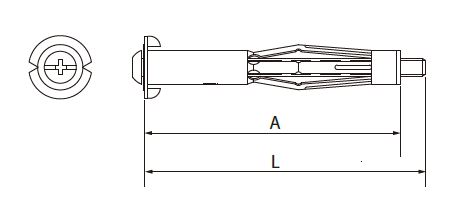

PRODUCT SIZE :



(Unit : MM)

ITEM NO SIZE SCREW    L       A

DRILL(Ø)

 GRIP
405 4XS  M4 25 20 9  UP-4
409 4S  M4 39 32 9 3-11
412 4E  M4 42 35 9 5-12
416 4MS  M4 45 38 9 8-16
423 4L  M4 52 45 9 16-23
427(425) 4EL  M4 60 54 9 17-27
438 4XL  M4 65 60 9 31-38
514 6S M5 58 52 11 7-16
527 6L M5 71 65 11 17-32
545 6XL M5 88 80 11 32-45
614 8S M6 58 52 13 7-16
627 8L M6 71 65 13 17-32
645 8XL M6 88 80 13 32-45
810 E M8 45 37 14 6-13
814 S M8 58 52 14 3-16
827 L M8 71 65 14 17-32
845 XL  M8 88 80 14 32-45
