Nylon Fixing





Material:

    Plug-  Nylon

      Screw- Steel

Surface treatment:

     Screw- Zinc plated Cr3+

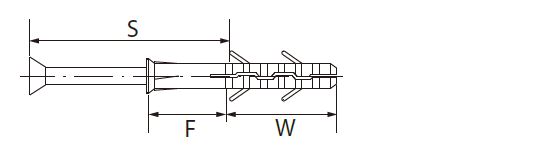

PRODUCT SIZE :



(Unit : MM)

SIZE

DRILL

(Ø)

MIN HOLE

DEPTH

MIN DEPTH

IN THE WALL

W

MAX DEPTH

LENGTH

F

SCREW
M6X60 6 75 20  10

4.0X65
M8X60 8 75 40 20 5.5X65
M8X80 8 95 40 40 5.5X85
M8X100 8 115 40 60 5.5X105
M8X120 8 135 40 80 5.5X125
M10X80 10 95 45 35 7X85
M10X100 10 115 45 55 7X105
M10X120 10 135 45 75 7X125
M10X140 10 155 45 95 7X145
M10X160 10 175 45 115 7X165
