Nylon Frame Anchor

Nylon Frame Anchor

Back

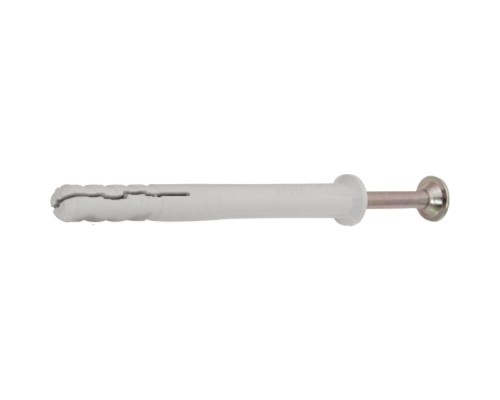

Nylon Frame Anchor

Material:

    Plug-  Nylon

     Screw- Steel

 Surface treatment:

     Screw- Zinc plated Cr3+

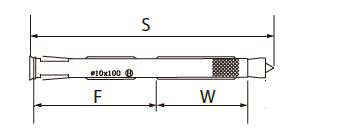

PRODUCT SIZE :

(Unit : MM)

SIZE

DRILL

(Ø)



MIN HOLE

DEPTH



MIN DEPTH

IN THE WALL

W



MAX DEPTH

LENGTH

F

 SCREW
M8X100 8 60 46  44  5X110
M8X120 8 60 46 64 5X130
M8X140 8 60 46 84 5X150
M10X75 10 70 48 17 6X85
M10X100 10 70 48 42 6X110
M10X120 10 70 48 62 6X130
M10X140 10 70 50 80 6X150
M10X165 10 70 50 105 6X175
