self-drilling type

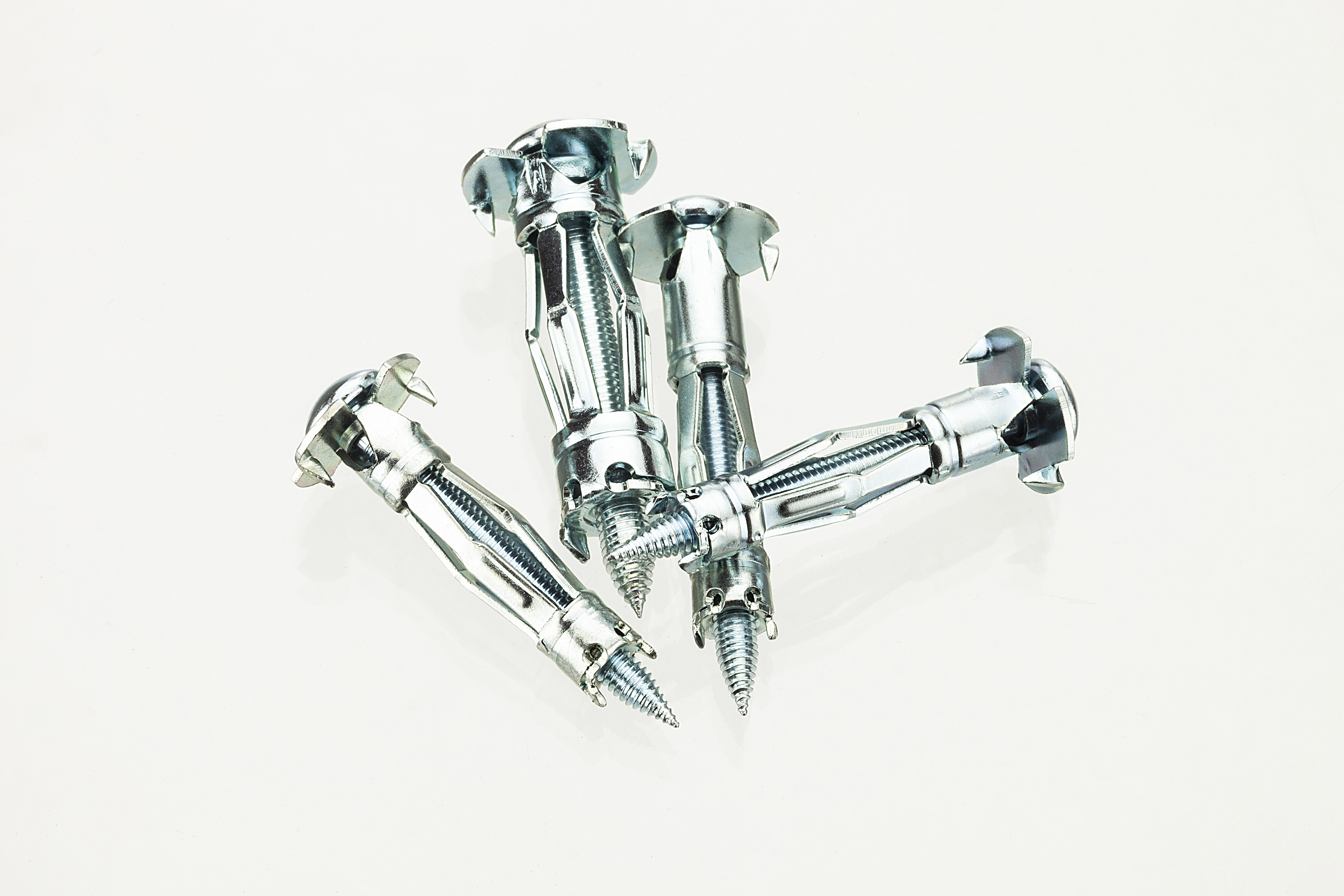

Hollow Wall Anchors-self-drilling type
(中空壁虎-自攻型)

Back

Hollow Wall Anchors-self-drilling type

without washer
with Truss head screw
the thicknesss of steel plate:

M4-0.8mm
M5-1.0mm
M6-1.0mm

No need to drill a hole in advance.

Material:

    Steel

Surface treatment:

    Zinc plated Cr3+

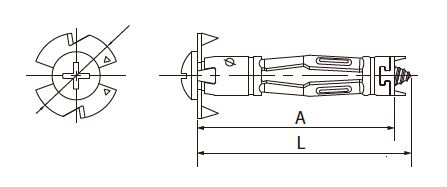

PRODUCT SIZE :

(Unit : MM)

ITEM NO SIZE SCREW    L       A      Drill(Ø)    GRIP
409 4S  M4 42 34 7.2 3-11
412 4E  M4 45 37  7.2 5-12
416 4MS  M4 49 40 7.2 8-16
510 5E  M5 47 36 10.8 3-13
610 6E  M6 47 36 10.8 3-13
